80 Ton High-Performance Pneumatic Stamping Machine
Product Description
Centered on an 80-ton rated pressure and equipped with a high-performance pneumatic system, this stamping machine focuses on efficiency, stability, and precision. It is suitable for stamping processing of medium and thick metal sheets, meeting the mass production needs of hardware, home appliances, auto parts, and other fields.
- Powerful Power Output: Featuring an 80-ton pneumatic drive design, it delivers stable pressure and strong explosive force. It can easily stamp carbon steel, stainless steel, and other metal materials with a thickness of less than 8mm, avoiding workpiece deformation or processing interruptions caused by insufficient power.
- High Processing Efficiency: The pneumatic system has a fast response speed, with a minimum single stamping cycle of 0.8 seconds. Compared with traditional mechanical stamping machines, its efficiency is improved by about 20%. It also supports continuous automated operations, adapting to assembly line processing.
- Precise and Stable Control: Equipped with a CNC operating system, the stamping stroke and pressure can be adjusted accurately, with a positioning error controlled within ±0.02mm. This ensures the dimensional consistency of mass-produced workpieces and reduces the rejection rate.
- Pneumatic Drive System: Equipped with high-efficiency air cylinder and pressure valve. Stepless force adjustment, fast striking (30–120 times/min), no oil leakage, and low energy consumption.
- Precision Slider & Guide: HT300 cast iron slider (quenched, wear-resistant) with 4-column guide (0.02–0.05mm gap). Ensures stable movement and high positioning accuracy (≤0.03mm/100mm stroke).
- Safety & Control: Dual-hand safety buttons, optional photoelectric protector (complies with GB 27607-2011). PLC control with touchscreen (parameter setting, fault alarm) for easy operation.
Product Parameters
| Nominal Pressure | 400KN |
| Slider Stroke | 100MM |
| Motor Power | 4000W |
| Number of Stroke | 45Time/min |
| Max Closing Height | 330mm |
| Distance Adjustment Between Slider Bottom and Work Table | 50mm |
| Distance From Slider Center to body | 500mm |
| Work Bench Size Front and Bcke*Left and Right | 640mm*420mm |
Our Adventages
Our team has been engaged in the hardware manufacturing industry for more than 20 years, focusing on providing production line equipment and technical support for kitchen sink products and kitchen hardware products. We are proficient in the entire production line technology of hardware factories, including metal coil rolling, heat treatment, stamping dies, laser cutting, slotting, bending, welding, grinding, polishing, cleaning, spraying, etc.Since entering foreign trade more than ten years ago, we have provided one-stop production line equipment, molds and leading technical support for hardware manufacturers around the world.Our advantages are: Professionalism creates value. Leading technology, efficient professional services throughout the whole process, and the most competitive prices.
Our tenet is: To become the most trusted technical partner of global hardware manufacturers !
After Sales Service
We are committed to providing you with all-round and high-quality after-sales service, so that you have no worries when using our products.
We are well aware of the importance of after-sales service to customers and always adhere to the customer-centered principle and solve problems for you with professional, efficient and considerate service. Choosing our products means choosing a sense of security and guarantee.

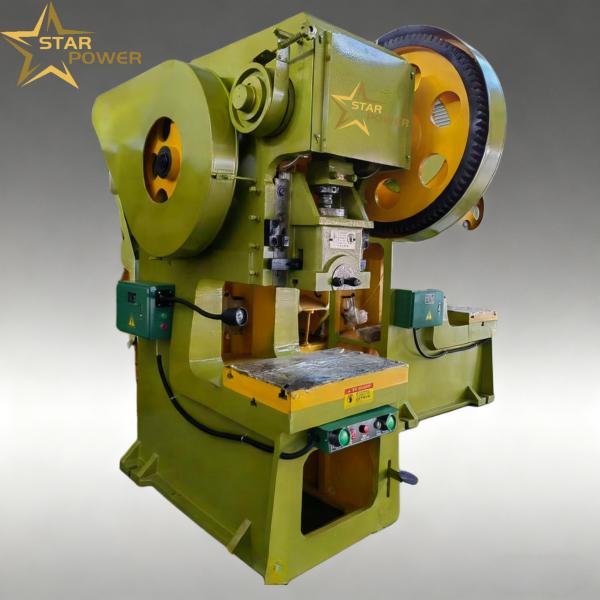

Product Photos
