PrecisionFrame Automated Welding Manipulator

Brand Name : star power

Model Number : PF - AWM - 3000

Certification : CU,ISO

Place of Origin : Guangdong, China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 100 Set/Sets per Month

Delivery Time : 1 month

Packaging Details : metal frame with film

Sink Type : Double - bowl, single - bowl

Warranty : 1 year

Productivity : High

Power Consumption : 20 kW

Safety : High

Origin : China

Return Force : 90KN

Equipment Configuration : Advanced

Production Process : Cutting, Bending, Welding, Polishing

Machine Power : Total Power: 16.5KW

Application : Cookware Manufacturing

Water Consumption : 1.5~2.5t/h (Normally)

Cushion Force : 500KN

Operating Mode : Automatic

System : PLC

Contact Now

PrecisionFrame Automated Welding Manipulator
Key Attributes
Sink Type Double - bowl, single - bowl
Warranty 1 year
Productivity High
Power Consumption 20 kW
Safety High
Origin China
Return Force 90KN
Equipment Configuration Advanced
Production Process Cutting, Bending, Welding, Polishing
Machine Power Total Power: 16.5KW
Application Cookware Manufacturing
Water Consumption 1.5~2.5t/h (Normally)
Cushion Force 500KN
Operating Mode Automatic
System PLC
Product Overview

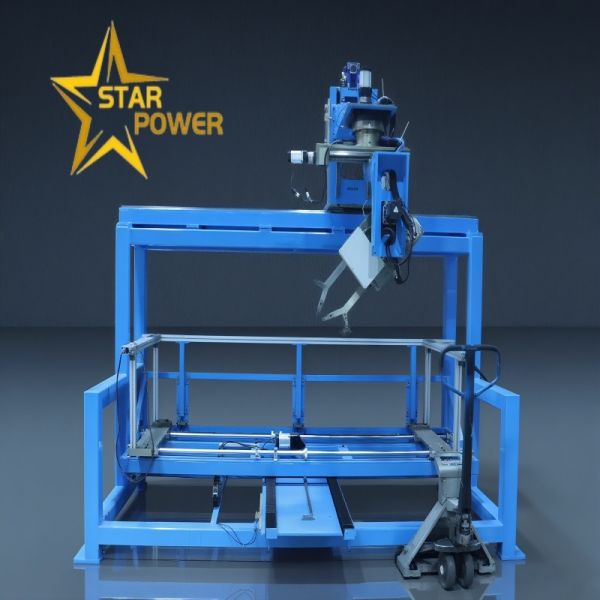

The PrecisionFrame Automated Welding Manipulator is an advanced industrial automation system engineered for high-precision welding operations in metal fabrication. Characterized by its robust blue powder-coated steel frame, the machine integrates a multi-axis articulating arm with precise motion control, capable of executing complex welding trajectories with repeatable accuracy of ±0.1mm.

The system features a reinforced gantry structure with dual vertical columns and horizontal traversing beams, providing a stable working platform even under heavy-duty operation. The intuitive control panel, mounted on a swing-arm console, offers a user-friendly HMI interface with programmable welding parameters (current, voltage, travel speed) and saved job profiles for quick setup.

  • High-torque servo motors for smooth arm movement
  • Precision linear guides for horizontal/vertical positioning
  • Integrated cable management systems to prevent interference
  • Accommodates various welding processes (MIG, TIG, SAW)
  • Works with materials ranging from carbon steel to stainless alloys
  • Emergency stop buttons at multiple access points
  • Protective railings and overload protection
  • Compact footprint with space-saving vertical column design
Technical Specifications
Brand PrecisionFrame
Working Radius 3000 mm
Axes of Motion 5 axes (X, Y, Z, rotation, tilt)
Positioning Accuracy ±0.1 mm
Repeatability ±0.05 mm
Maximum Payload 50 kg
Control System PLC with touchscreen HMI
Welding Current Range 50 - 500 A
Power Supply 380V 3-phase AC
Air Supply 0.6 - 0.8 MPa
Dimensions (L×W×H) 2800×1500×2200 mm
Net Weight 1800 kg
Safety Certification CE, ISO 13849
PrecisionFrame Automated Welding Manipulator PrecisionFrame Automated Welding Manipulator PrecisionFrame Automated Welding Manipulator
About Foshan Star Power Technology Co., Ltd.

Founded in 2022, Foshan Star Power Technology Co., Ltd. is located in Foshan, a city renowned for its pottery and martial arts. With a registered capital of 5 million yuan, our company focuses on a wide range of businesses, including information system integration, machinery and metal product sales, and import-export services.

In the field of sink production lines, we offer advanced solutions. Our equipment combines high-precision CNC technology with efficient production processes. We are committed to providing customers with complete sets of sink production line equipment, which can achieve operations such as laser cutting, bending, and welding. This not only ensures the high-quality manufacturing of sinks but also meets the production needs of different batch sizes, helping our clients improve production efficiency and product quality.
